Fire Extinguisher

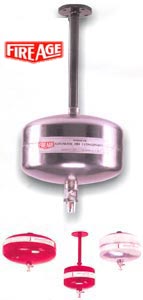

Modular Automatic Fire Extinguisher

Modular Automatic Fire Extinguisher

MODULAR AUTOMATIC FIRE EXTINGUISHER
Fire is a calamity that strikes without any warning and wreak an unimaginable havoc. According to a survey conducted 80% of the most damaging fires occur during night times,
weekends or holidays when no one is around. Hence an automatic operation is the only solution for round-the-clock protection against any kind of fire.Fire Age Fire extinguishers are simple and economical solution for buildings or structures where detection and suppression piped systems prove cumbersomeand very expensive.

How Do They Work?
When heat from an uncontrolled fire increases to a
pre-set temperature of the unit, the fusible link releases, discharging the extinguishing agent. The release  temperature of the extinguisher (fusible link) can be
pre-set at works ranging from 57C/68oC/79oC/93DC/140C and so on. they require no external source of energy and it can be operated electrically manually or mechanically for their operation.

Salient Features
1.An Automatic Detection and Suppression System
   together in a single unit quite unlike any other system
   available in the market
2. Automatic round-the-clock protection
3. Available in individual units or as a Complete system
4. Automatic, hence no human involvement, reducing the
    chances of injury and accidents to virtually zero.
5. Proves to be the most economical when compared and
    no surface re-laying
7. Reusable cylinder as it is not based on aerosol
    technology. Hence, most economical
8. Non-Freezing & long lasting.

Contents
Available with either Halon-1301 or Halon-1211, ABC all
purpose Dry chemical powder, or HFC-227ea (also known as FM-200TM, a regd. trademark of Great Lakes Chemical Corporation or as Dupont's FE-227TM, range of extinguishing agents.

Electro Piston Actuator (Optional Feature)
Switch can be linked into the wiring circuit for electric operation with solenoid actuator. This additional special facility can be attached at minimum extra cost.

Mounting Arrangement (Optional Feature)
Mounting Arrangement can be designed for special application request.

Applications
 In Industries of following Types : Powder, Textile,Chemicals, Fertilizers, Petrochemicals, Refineries, Ceramics, Metal Processing, Vegetable Oil, Rubber, Wood,
Paper and Pulp, Printing, Plastic, Paint, Computer etc. having special process hazards like Boiler & Furnaces, Fluid Power Systems, Oil quenching, Spray Finishing, Powder Coating, Dipping and Coating, Welding & Cutting, Grinding, Solvent Extraction, Conveyor Systems, Aerosol Charging, Transformers & Electrical Junction Boxes, Control Panels etc.

Applicability for General Occupancies & Storage Areas Like
Storage of Flammable & Combustible Liquids and Gases, Grain Mill Products Solid Fuels, Records, Libraries, Museums, Showrooms, Shops, Offices, Residential premises, Workshop, Garages, Paint Booths, Theaters, Radio Rooms,
TV Stations etc.

The Common Features For All Models
Expellent : Nitrogen
Cylinder Test
Pressure :
30 kgf/cm2
Cylinder : Stainless Steel / M.S.Platedor
Powder coated
